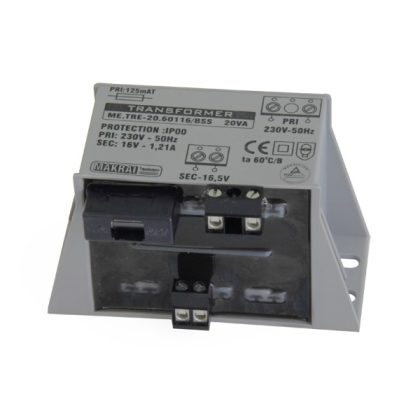

Makrai (MKR-20) 16V 20VA transformer

Article No.: ME_TRE_20
  • Info
  • Opinions

Makrai (MKR-20) 16V 20VA transformer

System cathegory
Non-system specific
Device type
Transformer
Brand
Makrai transformers
Series type
ME.TRE
Model number
ME.TRE-20.60116/BSS
PRI voltage
230 V - 50 Hz
SEC voltage
16,5 V
SEC current
1,21A
Fuse
Prescribed primary circuit fuse: 125 mAT
Manufacturing standard
EN 61558
Short-circuit protection
Conditionally short-circuit safe
Ambient temperature
max. 50°C, insulation class B 130°C
Humidity (non-condensing or icing)
Increased humidity resistance
Installation area
Indoor
IP rating value
IP00
Connection type
Wired
Enclosure material
Epoxy resin cast
Dimension
48 (H) x 88 (W) x 54 (D) mm
Other product data
Two chambers bobbin; double insulated
