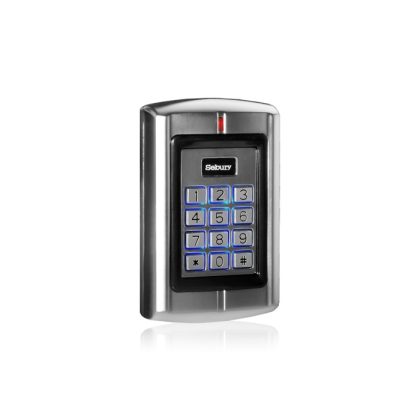

Sebury R3-K H&EM multifunction card reader

Sebury R3-K H&EM multifunction card reader

Card readers
Product model: R3-K
Product name: Metal waterproof PIN reader
Working temperature: - 40 ~ 60 ° C
Card reader type: EM、HID、IC、CPU
Product size: 128 * 82 * 28 mm
Article No.: R3-KHEM
  • Details
  • Info
  • Opinions

· Metal structure, waterproof, fully potted, confirms to Ip65
· Support EM, HID card(125KHz), or IC, CPU card(13.56MHz,ISO14443A)
· Support PIN keypad, with single key 4Bit, 8Bit and 4-6 digits PIN output.
· Wiegand 26 output, other format needs to be customized, ranging from Wiegand 26 to 37.

· Additional functions: anti-tamper, LED and buzzer controlled via external controller.



Specifications

· Input voltage: DC 12V±10%
· Standby current: ≤30mA
· Operating humidity: 0-95% (non-condensing)
· Dimension: 125mm × 82mm × 28mm

R3-K EM:
· Card: EM card (125KHz)
· Operating temp. range: -40° C~60° C (-40~140° F)

R3-K H&EM:
· Card: EM, HID card (125KHz)
· Operating temp. range: -40° C~60° C (-40~140° F)

R3-K M:
· Card: IC, CPU card (13.56MHz, ISO14443A)
· Operating temp. range: -20° C~60° C (-4~140° F)

Sebury R3-K H&EM multifunction card reader

System cathegory
Access Control
Device type
Card reader
Brand
Sebury
Series type
R
Model number
R3-KHEM
Card type
EM and HID
Frequency
125KHz
Lock control
Yes
Ambient temperature
-40 to 60°C
Humidity (non-condensing or icing)
max. 95%
Installation area
Indoor and outdoor
IP rating value
IP65
Connection type
Wired
Power supply
DC 12V±10%
Battery powered
No
Protection
Anti-vandal
Enclosure material
Metal
Dimension
128 (L) × 82 (W) × 25 (D) mm
